1.High-efficiency low pressure industrial RO membrane elements with ultra-high salt rejection rate, stable long-term desalination effect.
2.Integrated multi-stage pretreatment system: sand filter, activated carbon filter and precision cartridge filter to reduce raw water turbidity and protect core membranes.
3.Reliable high-pressure stainless steel booster pump, stable pressure output, low noise and low energy consumption.
4.Fully automatic intelligent control: auto flushing, low/high pressure protection, water shortage and full water auto-stop function, no manual constant monitoring required.
5.Compact, integrated modular structure, small floor space, easy installation, disassembly and transportation.
Product Overviews:
Reverse osmosis (RO) is a physical water purification process that works against natural osmosis. Driven by high hydraulic pressure, pure water molecules pass through the ultra-fine 0.0001μm membrane pores, while soluble salts, heavy metals, colloids, suspended solids, bacteria, viruses and organic impurities are completely trapped by the RO membrane.The separated concentrated brine is continuously discharged, and the purified fresh water flows into the storage tank. This system effectively removes up to 99% of water contaminants. Equipped with a complete pretreatment system, it eliminates sediments and rust, fully protects the RO membrane, and ensures stable, long-term desalination performance.

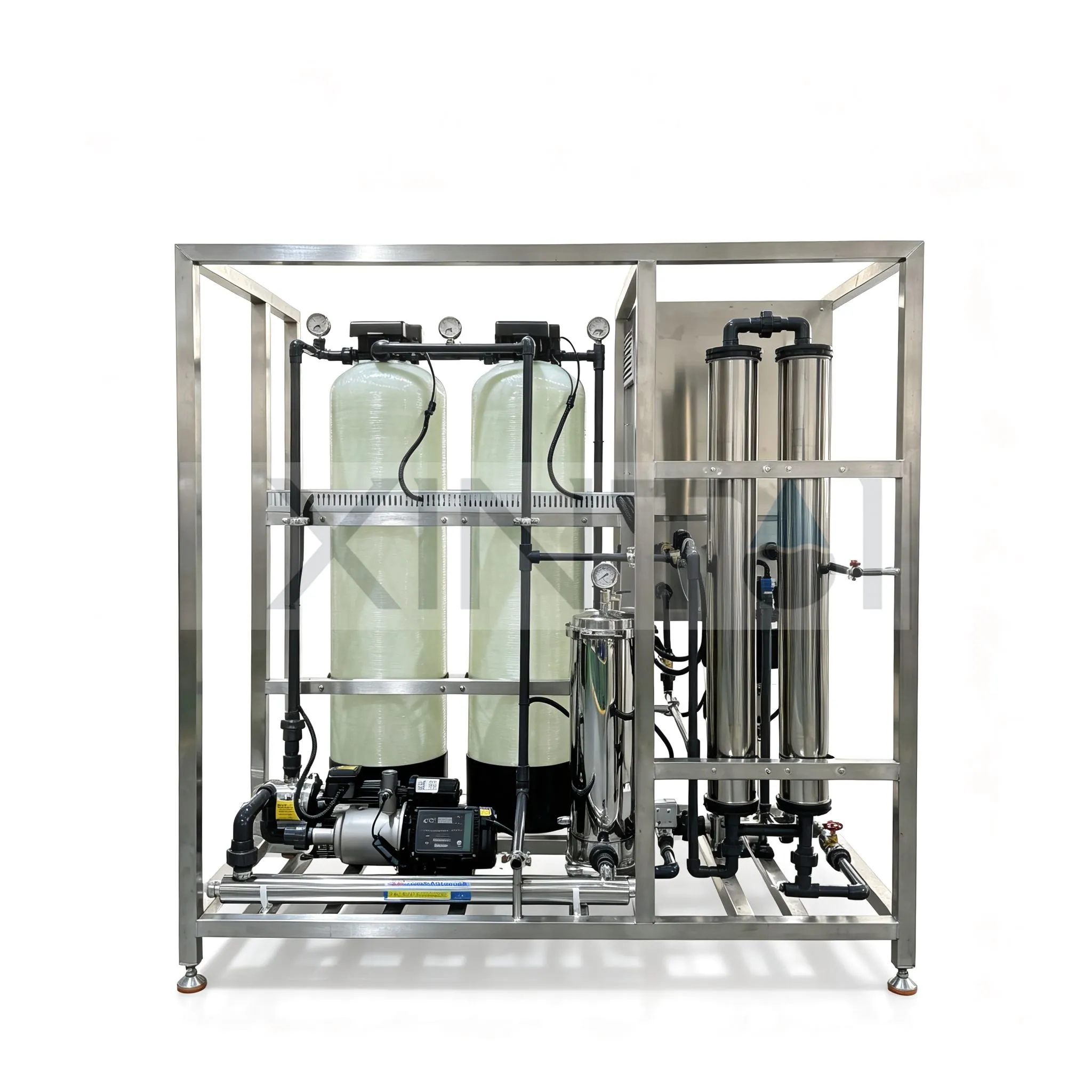

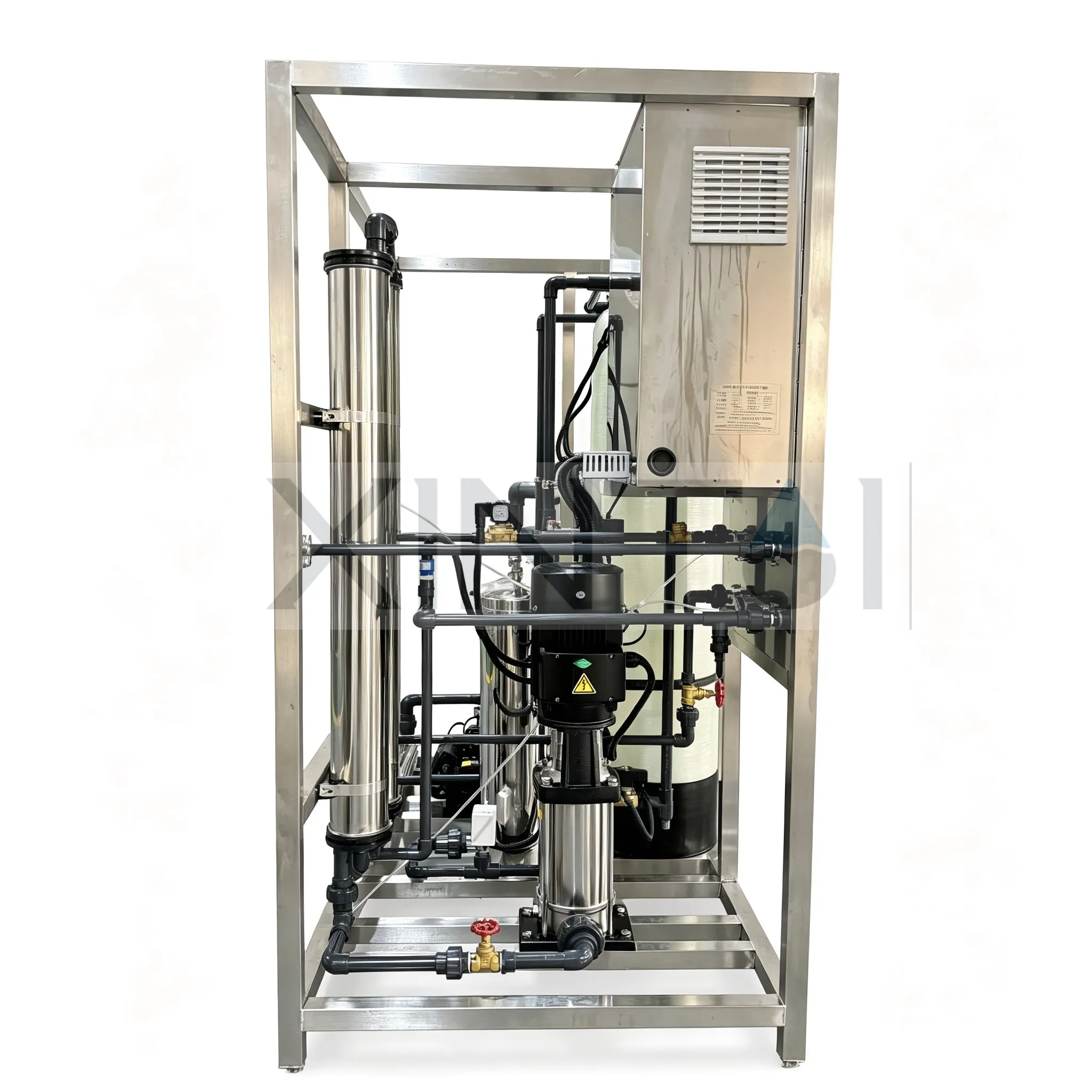

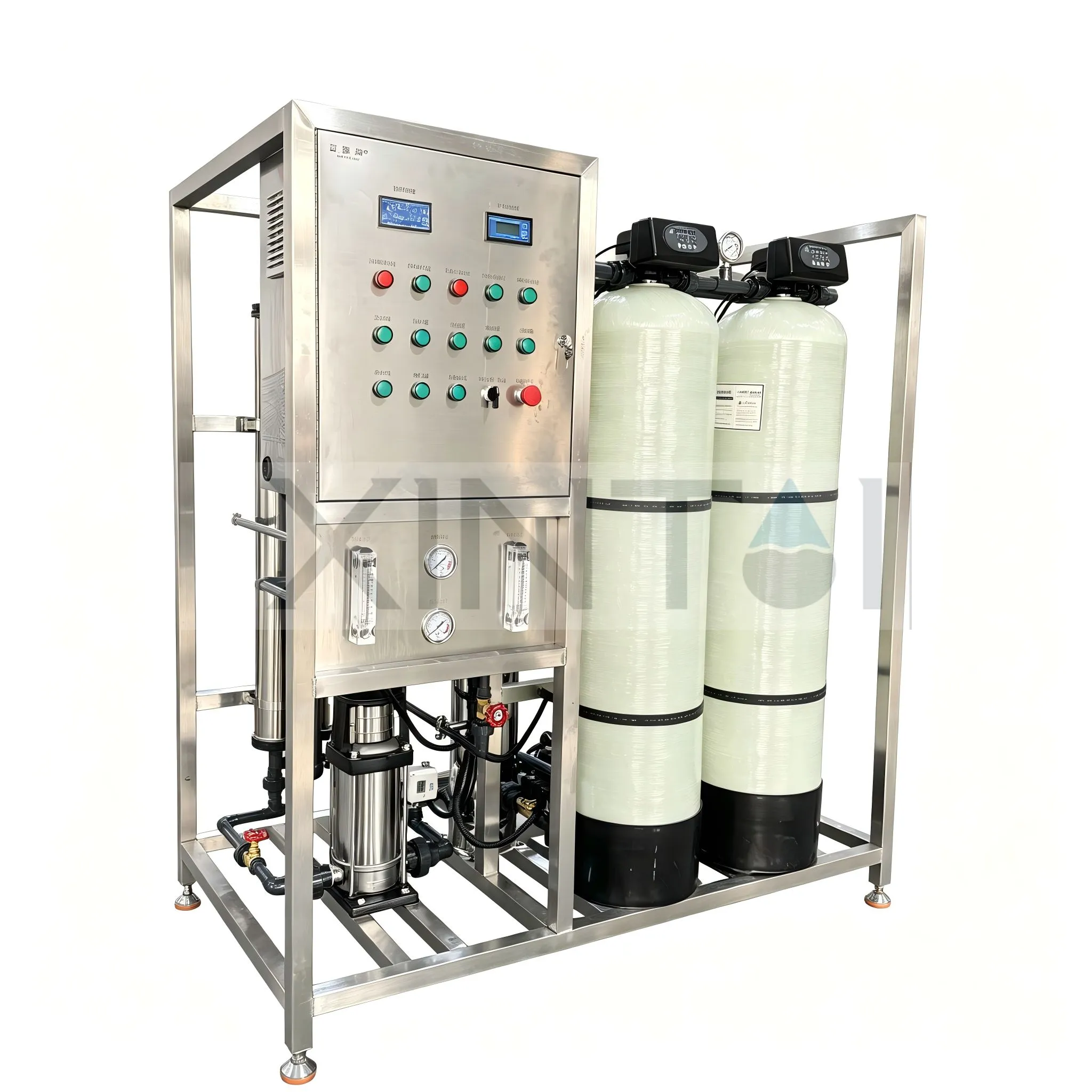

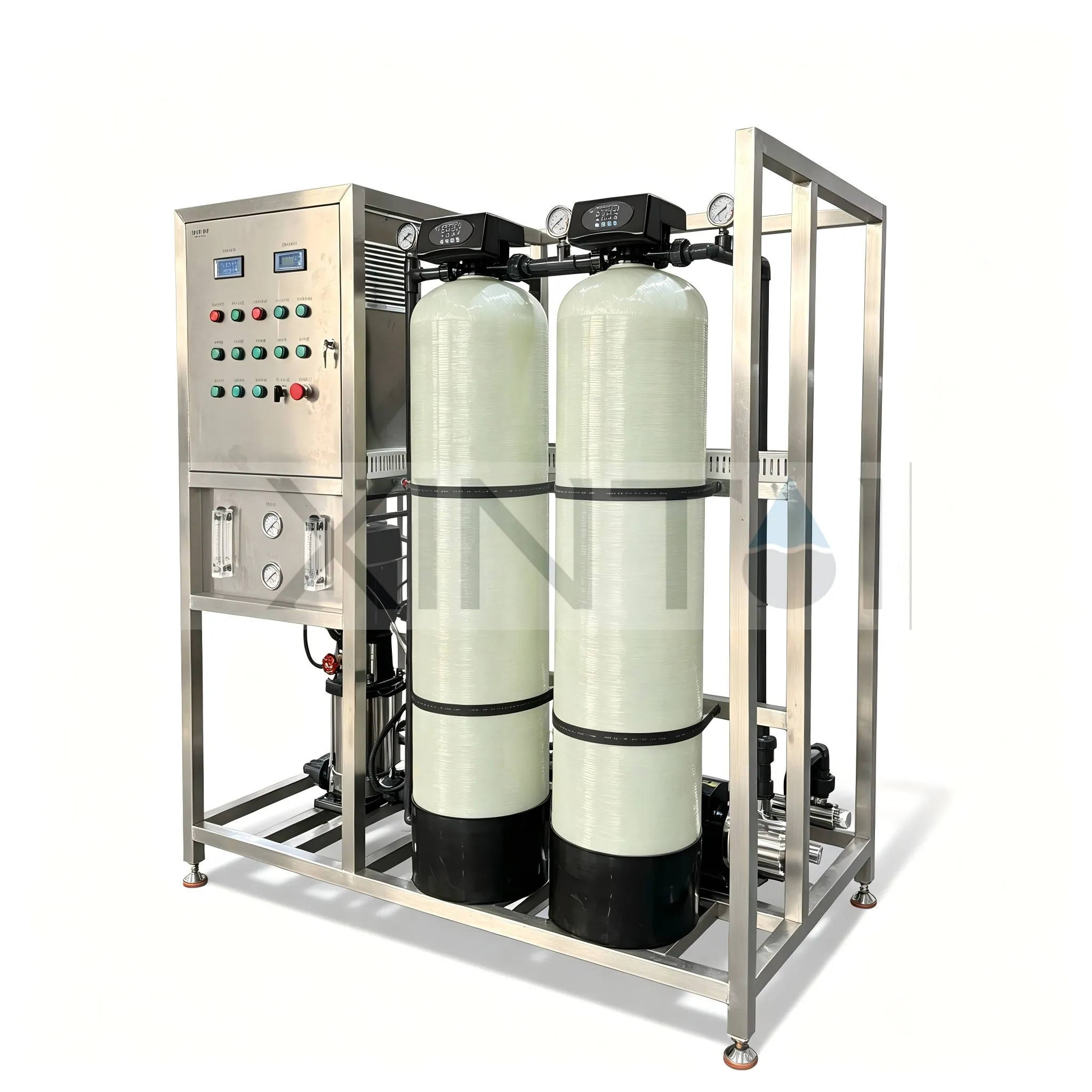

This integrated single-stage RO water purifier machine adopts full stainless steel construction, equipped with complete pre-treatment system including quartz sand filter, activated carbon filter and security filter, effectively removing sediment, chlorine, suspended solids and impurities from raw water in advance.
It is widely used for manufacturing purified water in food & beverage, cosmetics production, laboratory, small pharmaceutical factory, drinking water station, agricultural irrigation and commercial water supply. Customized water output capacity is available to match different project demands.
Product Parameters:
| Product Name: | Reverse osmosis water purifier machine/automatic water purifier |
| Product Capacity: | 500L/H |
| Recovery Rate: | 65% |
| Water Source : | industrial waste water ,tap water,well water,seawater,brackish water,surface water,ground water,borehole water etc. |
| Feed Water Quality: | Turbidity: <5 NTU, SS<20mg/L, Residual Chlorine<0.1mg/l |
| Working Temprature: | 2-50ºC |
| Operating Pressure: | 0.2-1.6 MPa |
| Operating Mode: | Full Automatic or Semi-Automatic/Manual make to order |
| Product Water : | Turbidity ≤ 0.1 NTU,Conductivity:<10uS/cm,Quality meet WHO Potable Drinking Water Standard |
| Membrane Element: | RO membrane,china brand (Ovay ) or Dow/Hydranautics/Toray can be customized as requirement |
| Skid Frame Material: | Full Stainless Steel 304 |
| Power Supply: | 380V/50Hz/3Pha or customized |
Advantages of Ro System
1.Marine industry: Yachts, cargo ships, fishing vessels, offshore drilling platforms for daily drinking and domestic water supply.
2.Coastal & remote islands: Residential living water, village centralized water supply, resort freshwater system.
3.Industrial use: Brackish water desalination, production process water, boiler makeup water, ultra-pure water pre-treatment.
4.Outdoor & emergency use: Portable mobile RO units for field operations, disaster rescue, remote construction camps.
5.Commercial fields: Hotels, seaside restaurants, aquaculture farms, small coastal water plants.
