Product Overviews:
This skid-mounted hollow fiber ultrafiltration (UF) system adopts pressure-driven membrane separation technology. The high-performance UF membranes effectively intercept suspended solids, colloids, turbidity, bacteria and macromolecular organic matter from raw water, while allowing water molecules and small soluble substances to pass through smoothly.

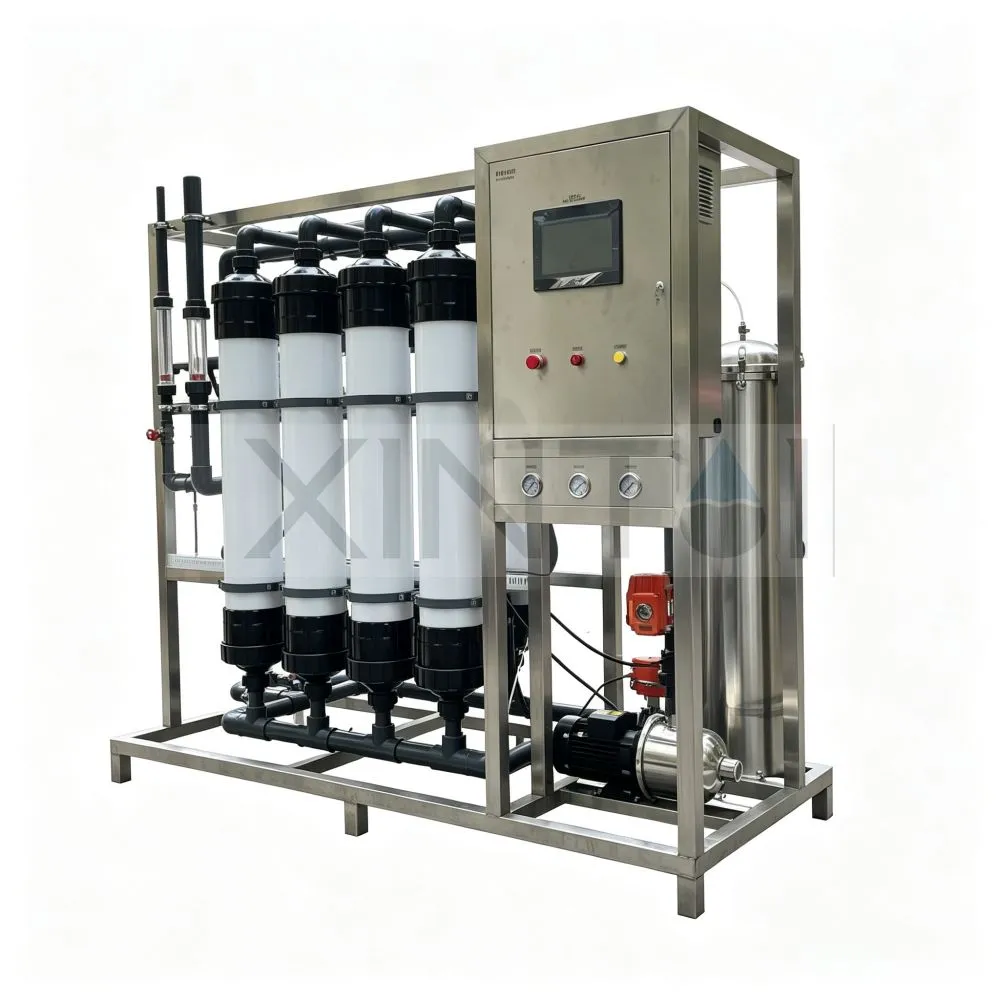

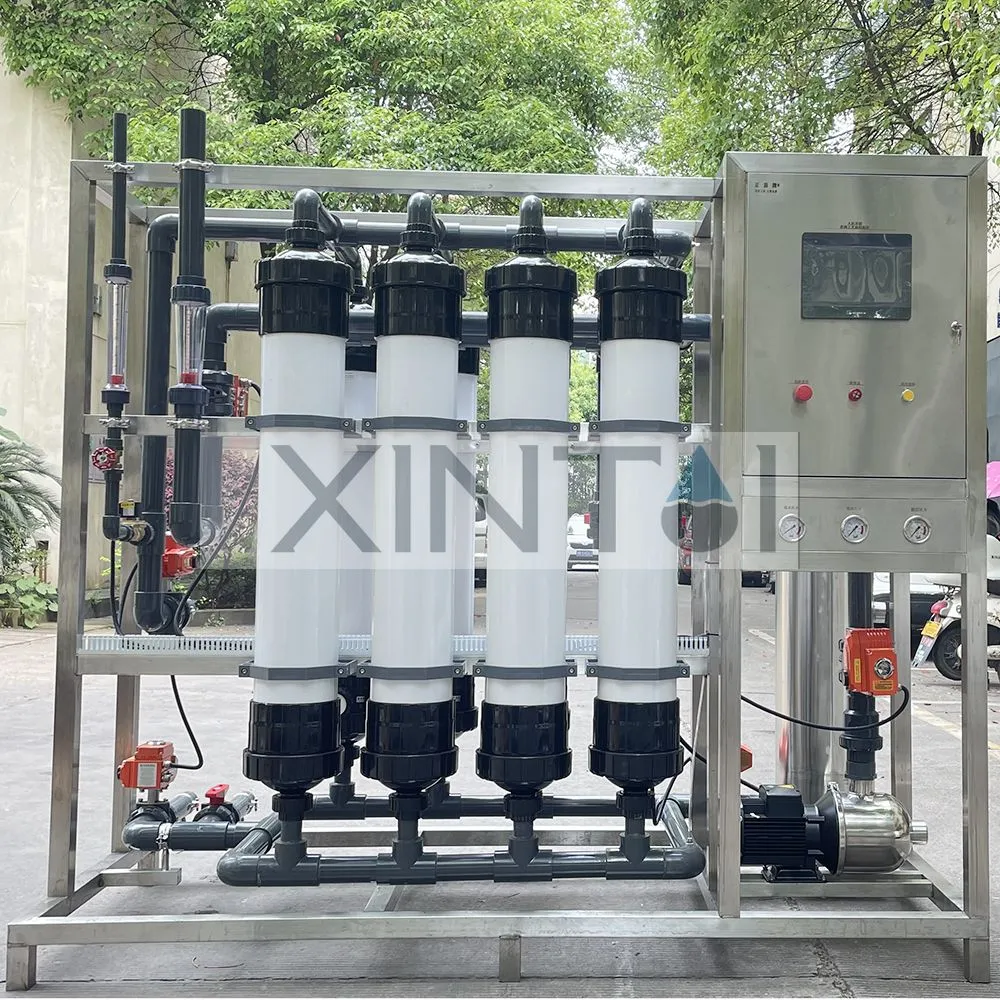

The whole unit is built on a robust stainless steel frame with anti-corrosion plastic pipelines. Equipped with an automatic control cabinet, flowmeters, pressure gauges, valves and circulation pumps, it supports automatic backwashing and periodic chemical cleaning (CIP). Regular flushing efficiently alleviates membrane fouling and extends the service life of membrane modules.
Ultrafiltration equipment is widely used as advanced pretreatment for reverse osmosis, nanofiltration and seawater desalination systems. It can be applied in wastewater recycling, river/lake water purification, groundwater treatment, industrial circulating water treatment and municipal water supply projects. It guarantees stable influent water quality for downstream membrane equipment and reduces operational risks of RO membranes.
Specifications:
| Product Name: | Ultrafiltration System(UF)/Ultrafiltration Water Treatment System/UF water purifier |
| Recovery Rate: | 90%-95% |
| Control: | PLC ,HMI Touch screen optional |
| Pretreatment Filter | Can be Disc/Sand/Carbon/Resin/Cartridge Filters which adopted according to raw water condtions |
| Product Capacity: | 250L/H , 500L/H, 1000L/H, 1500L/H,2000L/H,2500L/H,3000L/H........300T/H Customized |
| Feed Water : | industrial waste water ,tap water,well water,seawater,brackish water,surface water,ground water,borehole water etc. |
| Feed Water Quality: | Turbidity: <25 NTU, SS<20mg/L, Residual Chlorine<5ppm,Oil&Grease<2mg/L,Iron<1mg/L,COD<500mg/L |
| Working Temprature: | 2-50ºC |
| Operating Pressure: | 0.1-0.5 MPa |
| Operating Mode: | Full Automatic or Semi-Automatic or Manual |
| Product Water : | Turbidity ≤ 1NTU,even can reach <0.1 NTU,Quality meet WHO Potable Drinking Water Standard |
| Membrane Element: | UF membrane,china brand (Vontron/Ovay ) or Dow/Hydranautics/Toray optional |
| Qty of membrane element: | As per UF system Capacity |
| Power Supply: | 380V/50Hz/3Pha or customized |

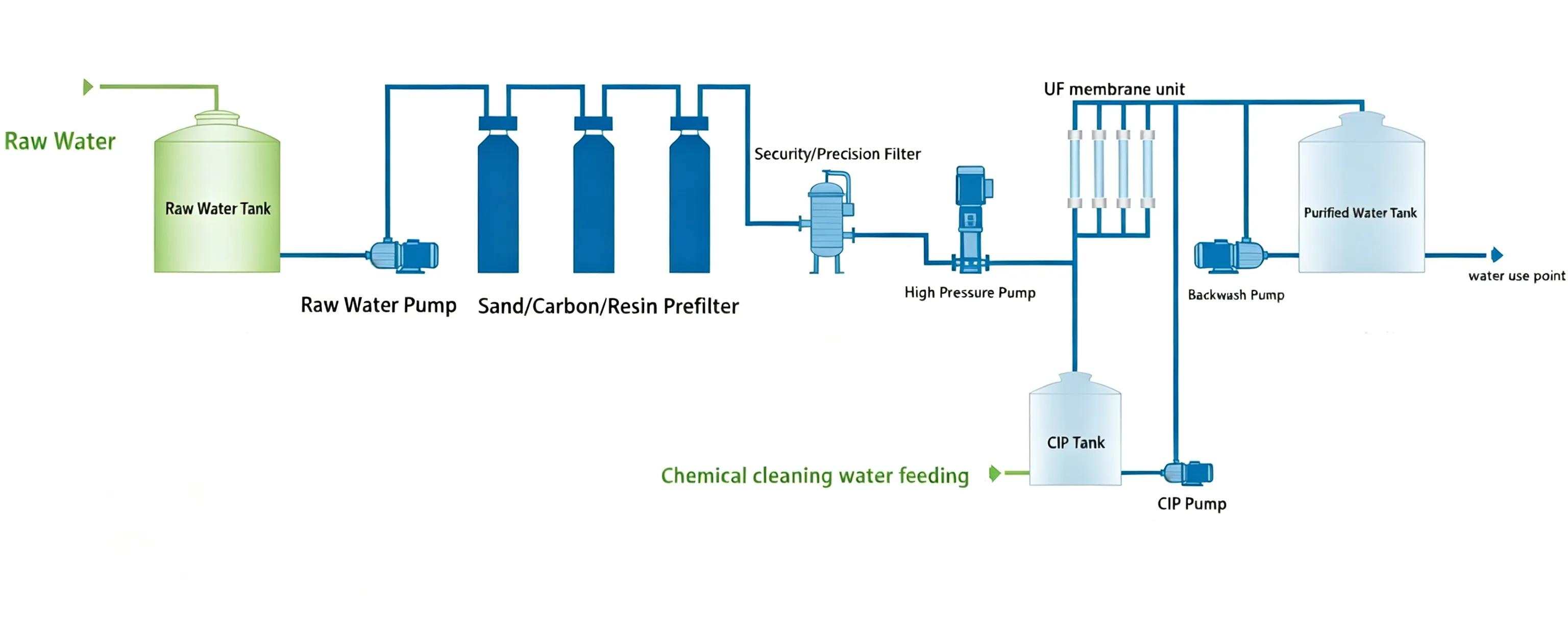

UF Process Flow Diagram:
Advantages of UF System:
Our bespoke UF system equipment is intricately designed to align with the unique parameters of each end user's feedwater quality. Beyond achieving the desired water quality and product capacity, these systems offer remarkable versatility with capacities ranging broadly from 250L/H to an impressive 300T/H. This ensures a scalable and adaptable solution, perfectly tailored to suit any requirement.
1.Raw surface water purification for drinking water pretreatment;
2.Industrial wastewater treatment & reuse: electroplating wastewater, printing & dyeing wastewater, food processing wastewater, chemical factory wastewater;
3.Reclaimed water recycling for factory circulating cooling water;
4.Pre-treatment process for RO/EDI ultrapure water production to protect downstream reverse osmosis membranes;
5.Sewage terminal advanced treatment for standard discharge.
