Product Overviews:

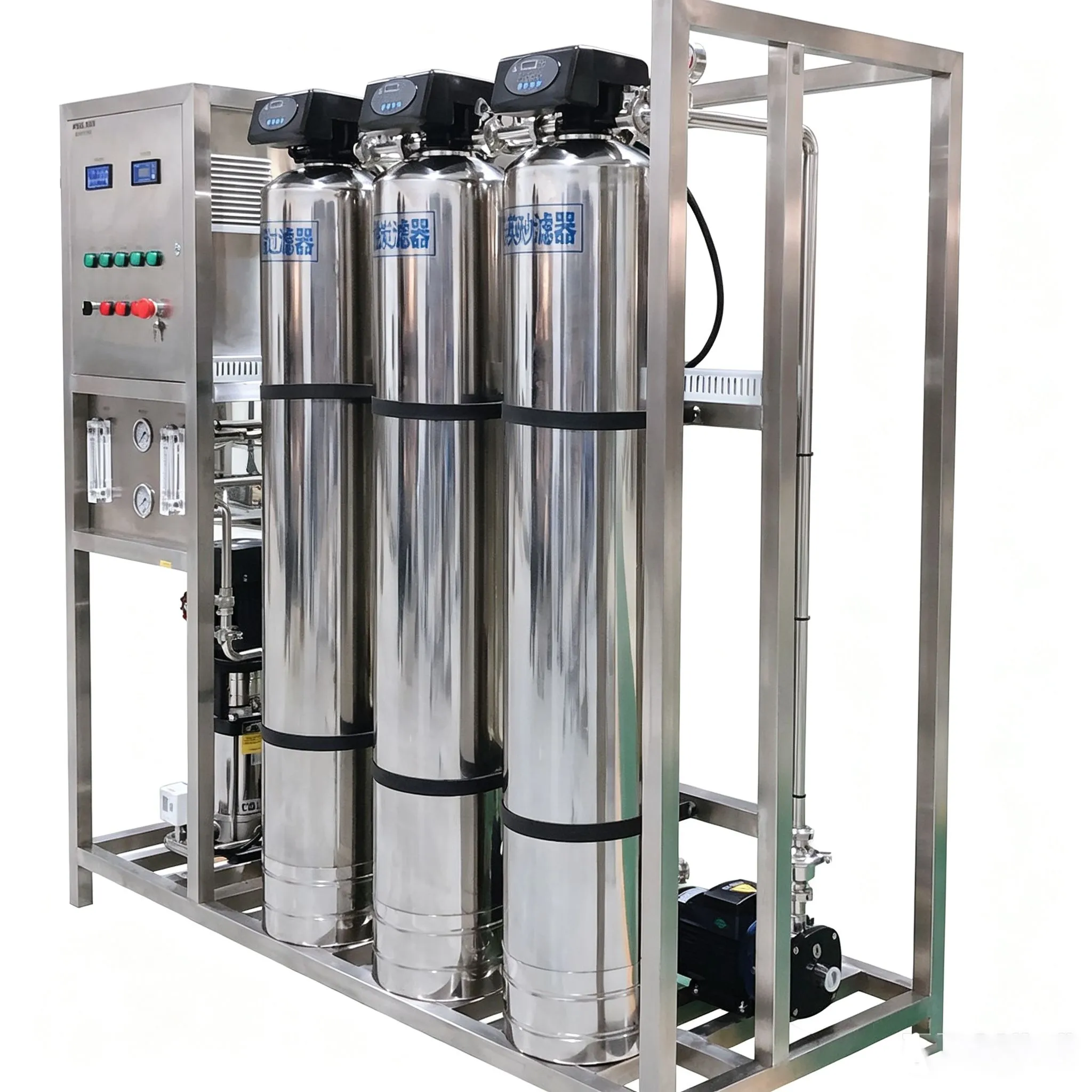

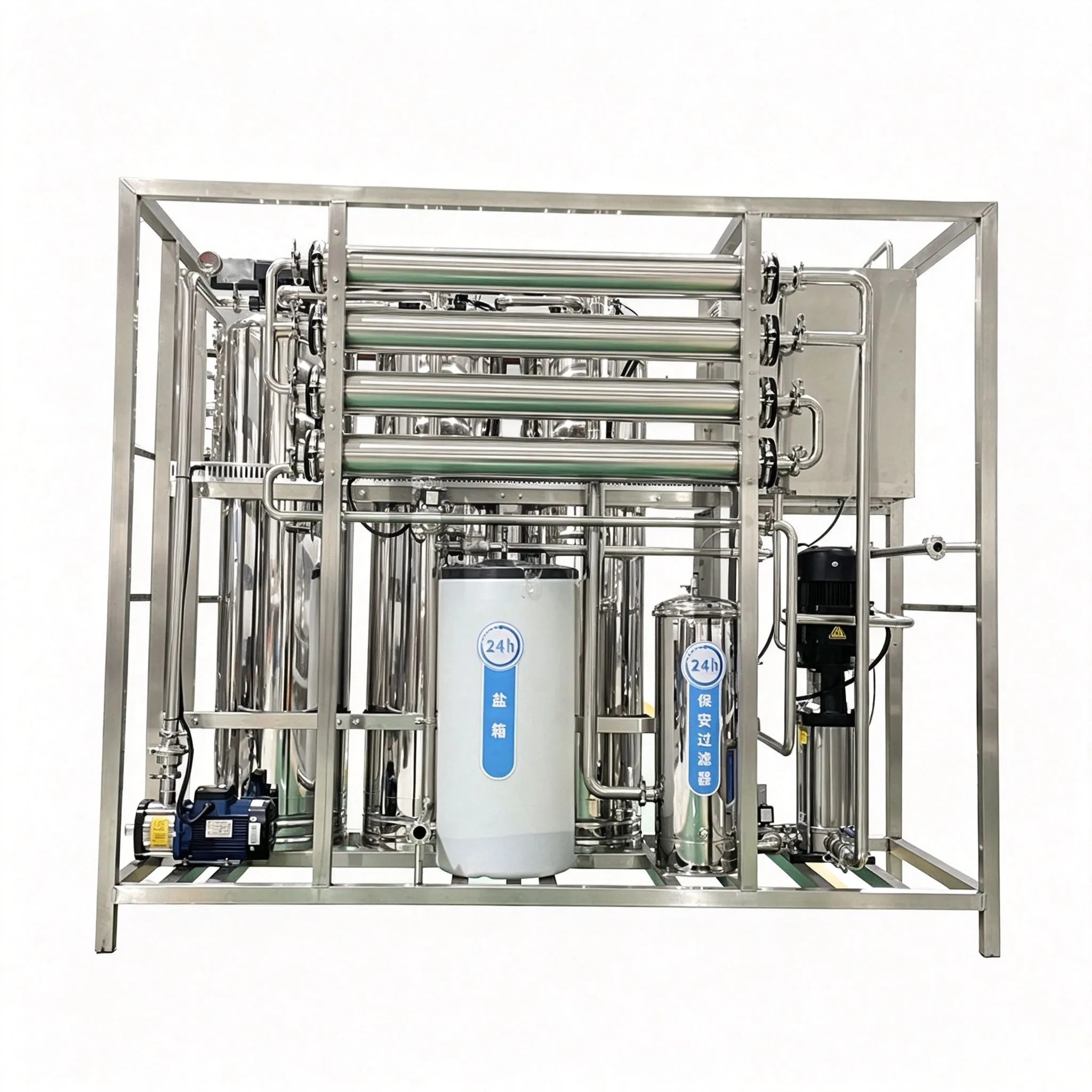

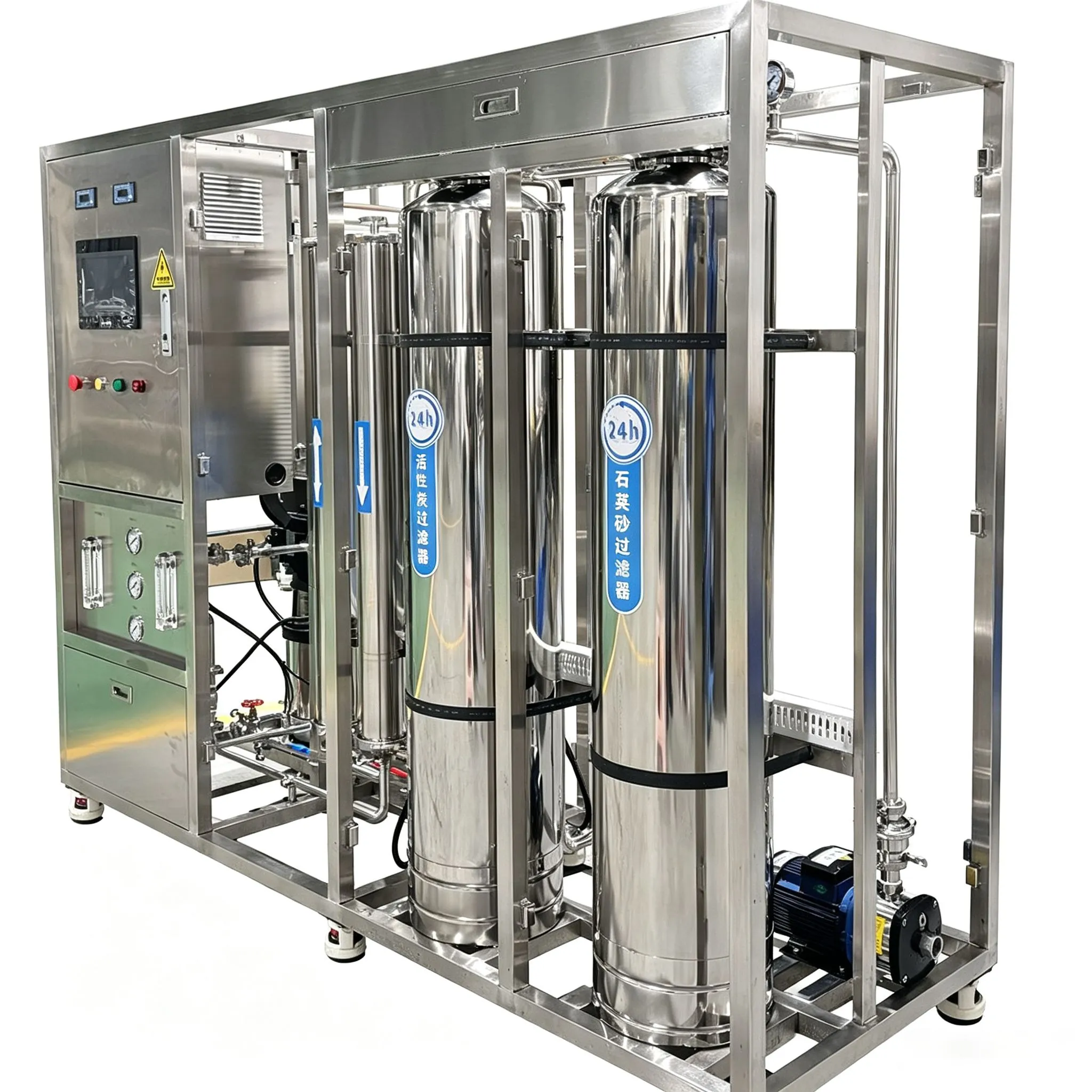

This integrated stainless steel nanofiltration (NF) water treatment equipment adopts nanofiltration membrane separation technology, equipped with complete pre-treatment consisting of stainless steel quartz sand filter, activated carbon filter and precision security filter. Nanofiltration sits between reverse osmosis and ultrafiltration. It efficiently removes hardness, partial dissolved salts, organic contaminants, chroma, bacteria and viruses, while retaining beneficial mineral substances in water, achieving partial desalination instead of full demineralization. The whole set adopts full stainless steel pressure vessels and frame structure, fitted with automatic backwash control valves, pressure gauges, flow meters and centralized electrical control panel for fully automatic unattended operation. Compact skid-mounted design saves installation space and facilitates transportation and maintenance.
It is widely used for mineral water production, spring water purification, drinking water softening, food & beverage processing, groundwater treatment, wastewater advanced recycling and agricultural water treatment. Customized water output capacity and operating configuration are available to satisfy different water quality requirements.
Specifications:
| Product Name: | Full Stainless Steel Nanofiltration Water Treatment System |
| Product Capacity: | Customized |
| Recovery Rate: | 70%-80% |
| Water Source : | industrial waste water ,tap water,well water,seawater,brackish water,surface water,ground water,borehole water etc. |
| Feed water quality: | SDI₁₅ ＜ 3,Turbidity ≤ 1 NTU |
| Working Temprature: | 2-50ºC |
| Operating Pressure: | 0.2-1.6 MPa |
| Operating Mode: | Full Automatic or Semi-Automatic or Manual |
| Product Water : | Turbidity＜0.1 NTU, Color＜1 degree, TOC＜0.3 mg/L |
| Membrane Element: | Nanofiltration Membrane |
| Skid Frame Material: | Stainless Steel 304 |
| Power Supply: | 380V/50Hz/3Pha or customized |
NF Process Flow Diagram:
Advantage of Nanofiltration System:
Selective filtration: Remove pollutants while retaining useful minerals
Low working pressure, lower energy consumption than RO systems
Efficient removal of organics, chroma, bacteria and water hardness
Reduce formation of harmful disinfection by-products
Modular skid-mounted design, convenient installation & maintenance
Automatic operation with stable running performance
Versatile for mineral water, food industry and groundwater treatment
