Product Overviews:

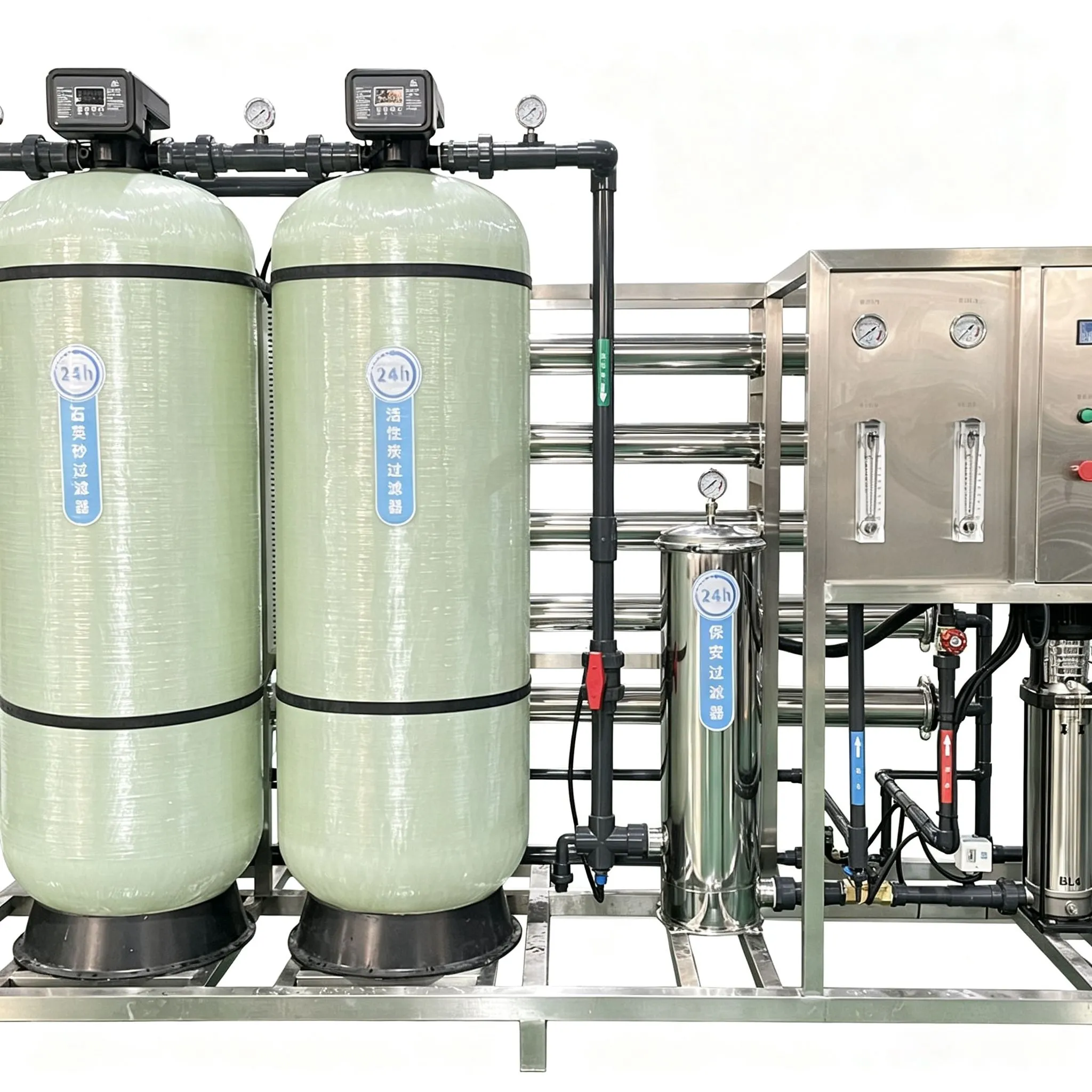

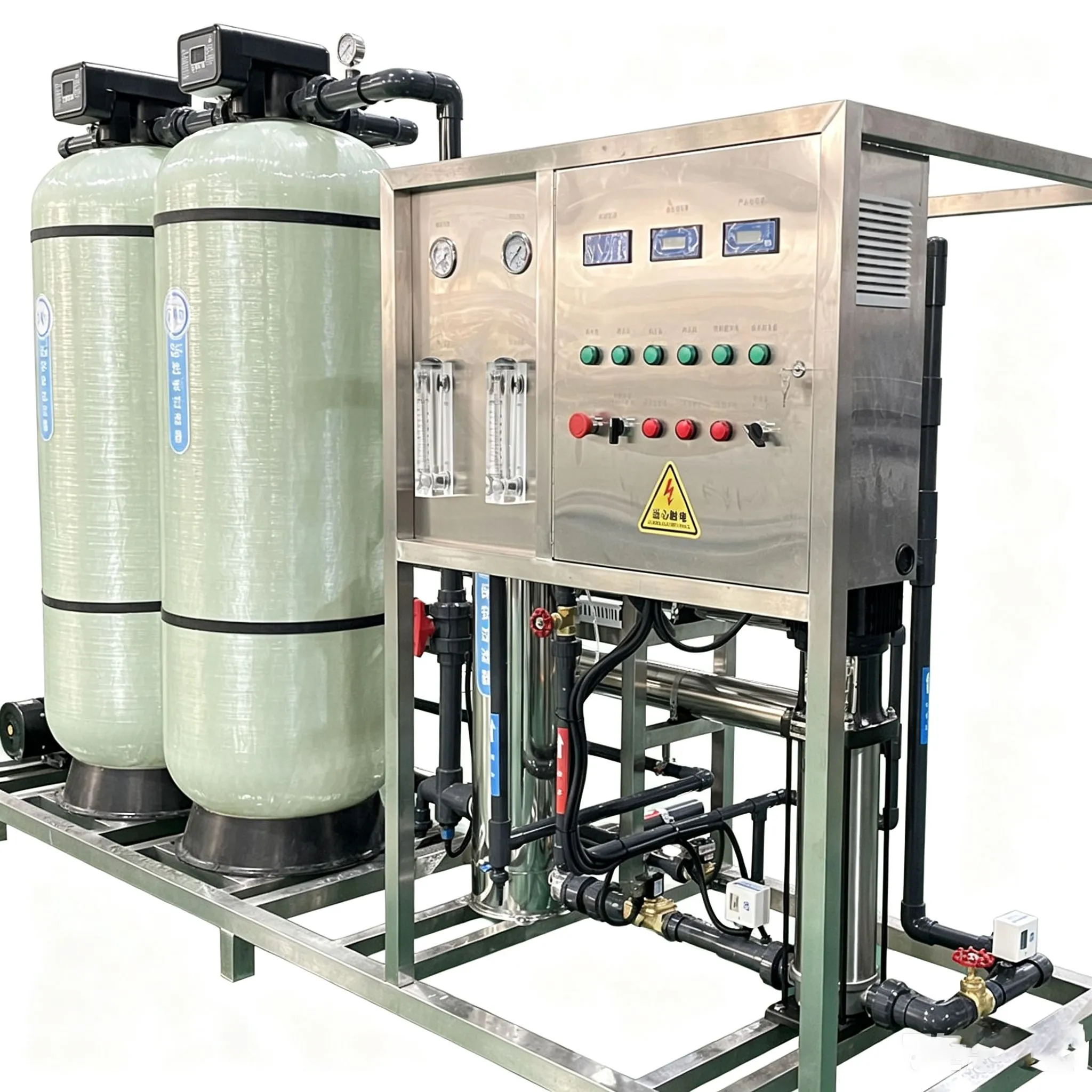

This complete RO pre-treatment unit consists of a quartz sand filter tank, activated carbon filter tank and security cartridge filter, serving as the front-end purification process of reverse osmosis systems. The fiberglass pressure vessels are fitted with automatic backwash control valves for unattended 24-hour continuous operation.
Equipped with pressure gauges and flow meters to monitor operating status in real time. The skid-mounted integrated design simplifies installation and pipeline layout. This pre-treatment module stabilizes raw water quality, reduces fouling risk of RO membranes, extends membrane service life and ensures long-term stable performance of the whole pure water system. Widely matched with industrial & commercial RO systems for electroplating, cosmetics, food processing, laboratories, boiler feed water and drinking water projects. Custom tank sizes and automatic/manual control options are available.
Specifications:
| Product Name: | Pretreatment System for RO Plant/Activated Carbon&Sand Filter System |
| Product Capacity: | Customized |
| Layout configuration: | single-stage or multi-stage parallel connection |
| Water Source : | waste water ,tap water,well water,seawater,brackish water,surface water,ground water,borehole water etc. |
| Tank Material: | FRP,Anti-corrosion carbon steel,304/316 stainless steel |
| Working Temprature: | 2-50ºC |
| Operating Pressure: | 0.2-1.6 MPa |
| Operating Mode: | Full Automatic or Semi-Automatic or Manual |
| Treatment mode: | Multi-stage treatment |
| Certification: | CE,ISO9001 |
