Product Overviews:

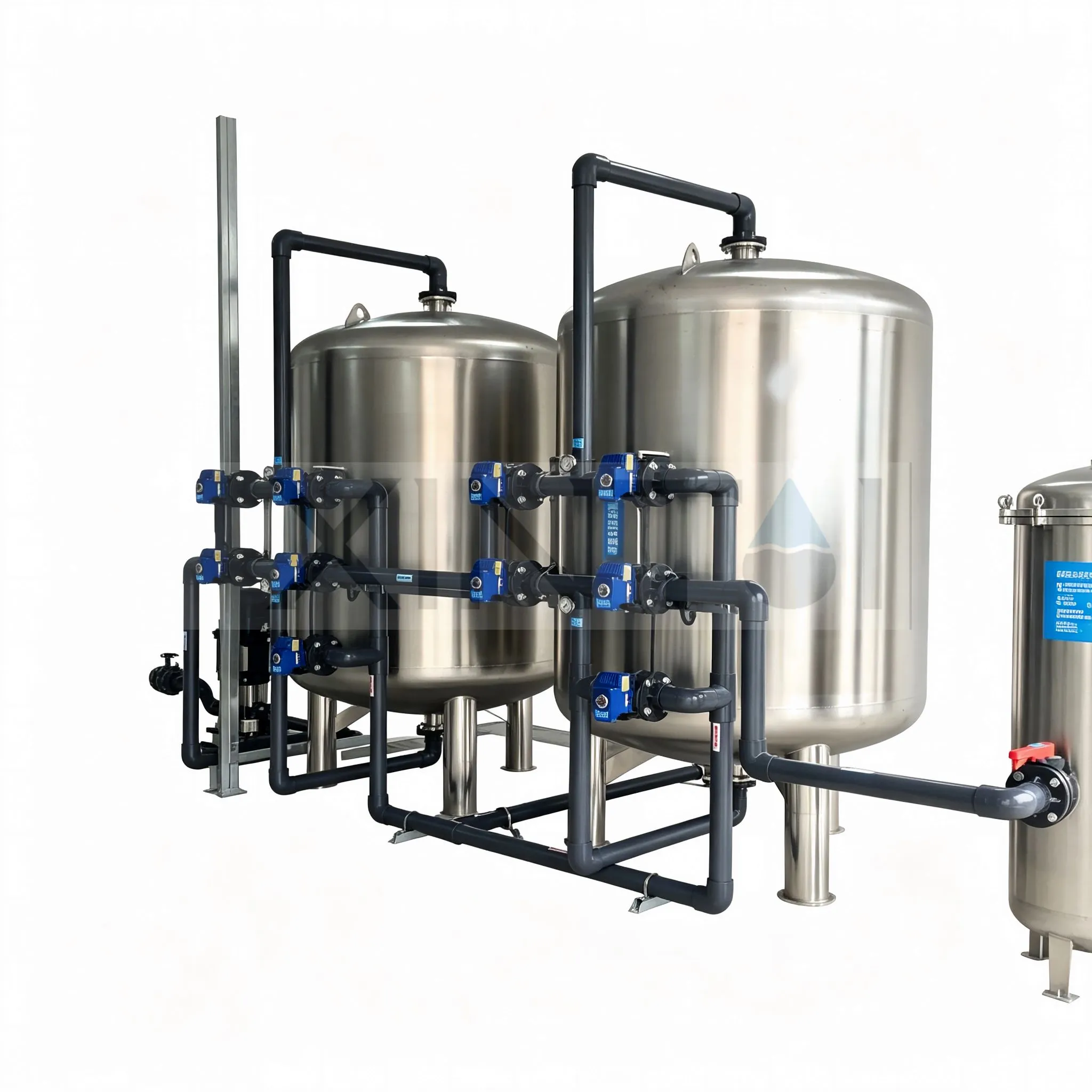

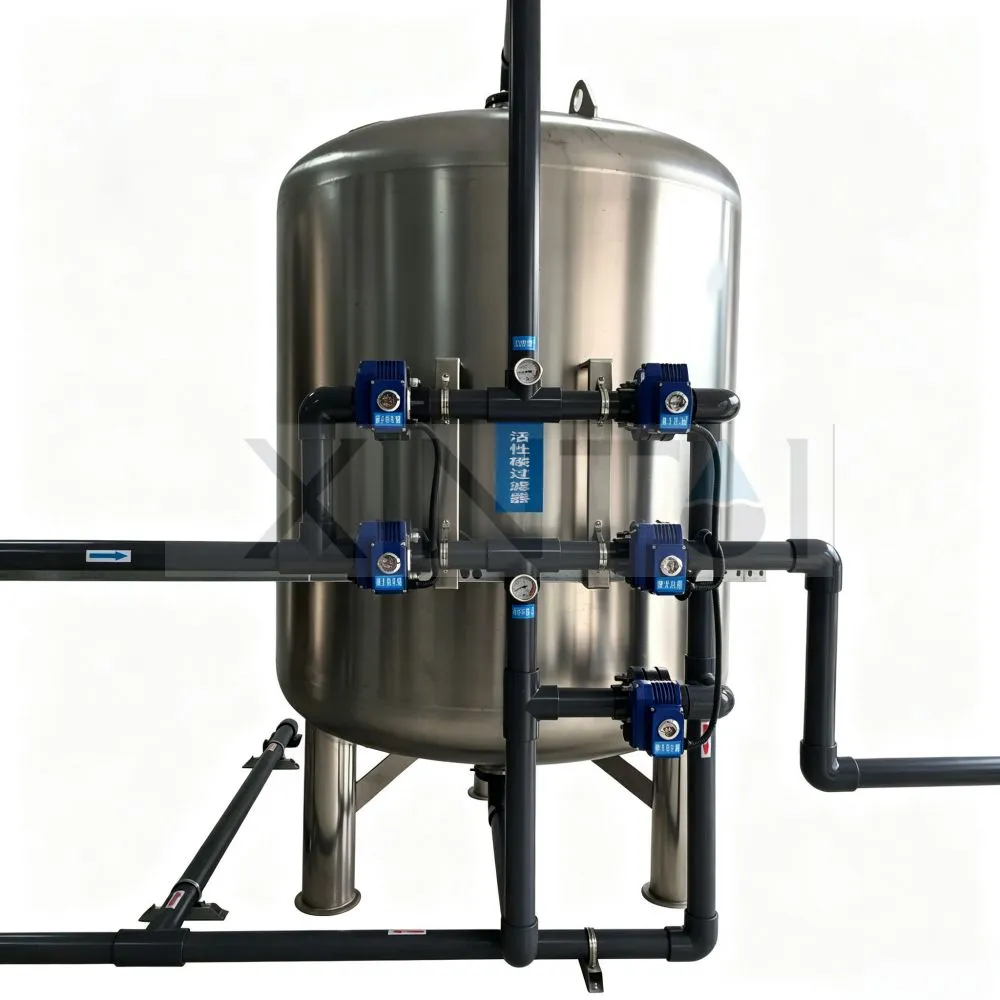

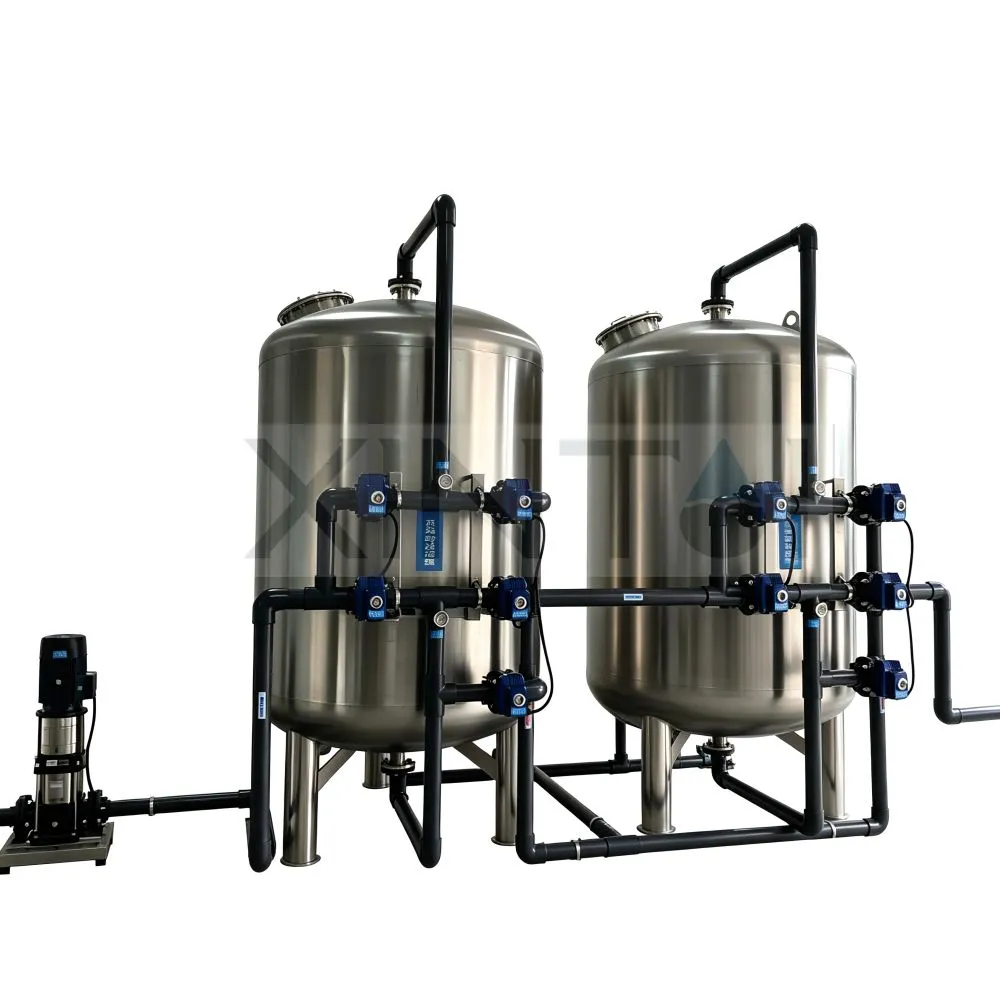

The 60T/H multi-media filter is an industrial water pretreatment equipment with a rated water treatment capacity of 60 tons per hour. It is equipped with multiple independent control valves and adopts PLC automatic intelligent control system. The equipment takes layered multi-media filter materials as the core filtration medium, which can effectively intercept suspended solids, sediment, colloid and other impurities in raw water. Through the automatic switching of independent valves controlled by PLC, the equipment realizes continuous automatic filtration operation and periodic automatic backwashing functions. It features stable water treatment capacity, unmanned automatic operation and efficient impurity removal, and is widely used for water quality purification in various industrial water systems.
Specifications:
| Product Name: | MMF Multimedia Filters/ Pretreatment Sand/Carbon Filters |
| Product Capacity: | 60T/H or make to order |
| Configuration: |
1x Booster Pump(Brand: CNP/NYP/SHIMGE/GRUNDOSS...),1x Sand Filter,1x Activated Carbon Filter Polished SS304 Stainless Steel Filter Tanks with a lot electric butterfly valves and controlled by PLC,automatic servicing,flushing,backwashing
|
| Water Source : | waste water ,tap water,well water,seawater,brackish water,surface water,ground water,borehole water etc. |
| Tank Material: | Stainless steel ,Anti-corrosion or FRP/Carbon steel make to order |
| Working Temprature: | 2-50ºC |
| Operating Pressure: | 0.2-0.6 MPa |
| Operating Mode: | Full Automatic or make to order(automatic or manual ) |
| Product water quality | Turbidity <5NTU,the turbidity can be reduced to less than 1NTU at some good raw water conditions. |
| Certification: | CE,ISO9001 |
| Sand Filter | Remove the dust,rust,solid colloids,large particles so as to reduce the turbidity |
| Carbon Filter |
Remove the chlorine,organics,colors and improve the taste as well |
| Resin Filter | Exchange the ca+,mg+ ,to softening the hard water |

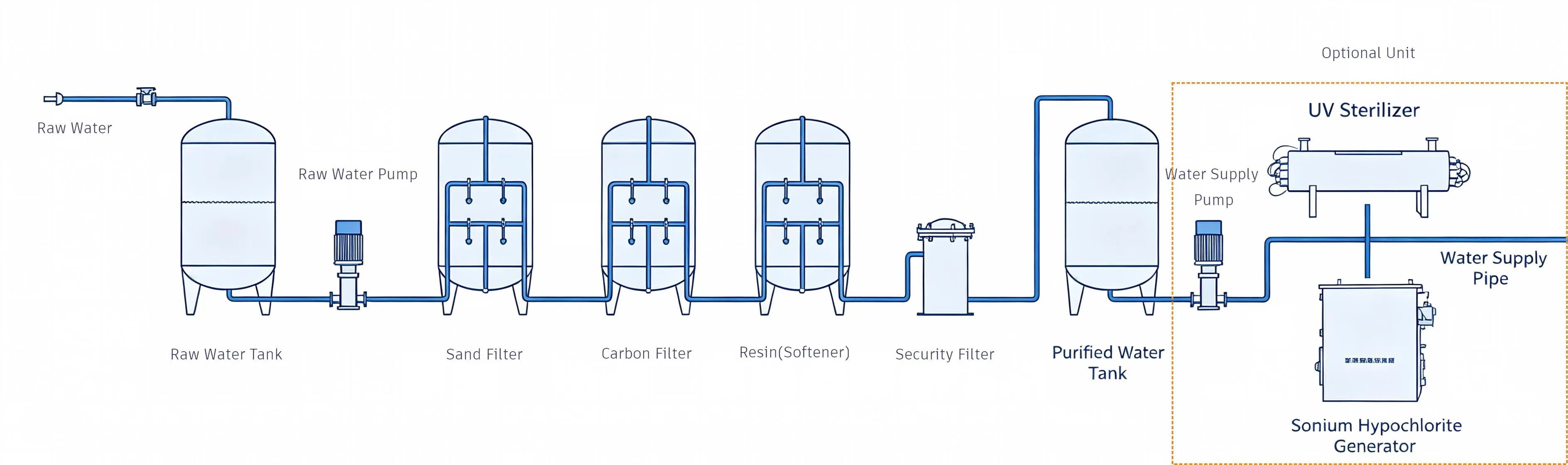

Process Flow Chart of Standard Multimedia Filters:
Advantages of Multimedia Water Filters:
Stable 60T/H Treatment Capacity: The equipment is designed with industrial standard 60 tons per hour rated water output, with reasonable pipeline and filter tank structure design, ensuring continuous and stable water treatment efficiency, and meeting the demand of large-flow industrial water pretreatment.
Independent Valve Precise Control: Equipped with multiple independent control valves for separate management of each process pipeline, avoiding pipeline linkage interference. The valve switching is sensitive and accurate, effectively reducing the failure rate of pipeline control and improving the stability of equipment operation.
Full PLC Automatic Operation: The whole process of filtration, standing, backwashing, drainage and reset is automatically controlled by PLC without manual intervention. It supports parameter customizable setting, real-time operating data monitoring and fault automatic alarm, realizing intelligent and unmanned operation.
Efficient and Durable Filtration Performance: The composite layered multi-media filter material has strong impurity interception and adsorption capacity, with high removal rate of suspended solids, colloid and turbidity substances in water. The backwashing is thorough, which can effectively restore the filtration performance of the filter material and extend the service life of the filter medium and equipment.
Low Operating Cost: The automatic backwashing program is started on demand according to pressure difference and time, avoiding frequent invalid backwashing, saving water and power consumption. The equipment has simple structure, low failure rate and convenient daily maintenance, greatly reducing manual and operating costs.
Strong Operational Safety: The PLC system is equipped with overpressure protection, overload protection and program interlock protection functions. In case of abnormal water pressure, pipeline blockage and other faults, the system will automatically stop and alarm to avoid equipment damage and ensure safe and stable operation.
The 60T/H PLC automatic control multi-media filter is suitable for large-flow raw water pretreatment and water quality purification in various industrial and civil fields.
Its main application scenarios include:
industrial circulating water treatment, boiler make-up water pretreatment, reverse osmosis ultra-pure water pre-treatment system, mine water treatment, printing and dyeing wastewater advanced treatment, food and beverage factory water purification, pharmaceutical industry water treatment, municipal domestic water purification, swimming pool water circulation filtration, and other industries and scenarios that require large-flow water impurity removal and turbidity reduction. It is especially suitable for water treatment projects with high requirements for continuous operation, automatic control and stable water quality.
