Product Overviews:
The single-stage reverse osmosis system mainly removes dissolved salts in water, as well as large organic molecules and fine particles not eliminated in the previous treatment stage. Adopting RO membrane separation technology, it can effectively separate harmful substances including all particles, colloids, organic contaminants and microorganisms in water, along with approximately 99% of dissolved salts, so as to realize the purpose of desalination and water purification.
Advantages of Ro System
- Excellent desalination performance: Salt rejection rate up to 98%–99.7%, produced water meets international potable water standards.
- Fully automatic running, greatly cutting labor management cost.
- Compact modular design saves installation space and shortens on-site construction cycle.
- Strong corrosion resistance, durable to operate in high-salinity, humid coastal marine environment.
- Low energy consumption and simple maintenance; membrane cleaning cycle is long with complete pretreatment.
- Flexible customization: Multiple water output specifications from small portable units to large industrial desalination plants.
- Safe and hygienic physical filtration process, no secondary pollution from chemical additives.
- Stable water quality unaffected by raw water salinity fluctuation within design range.

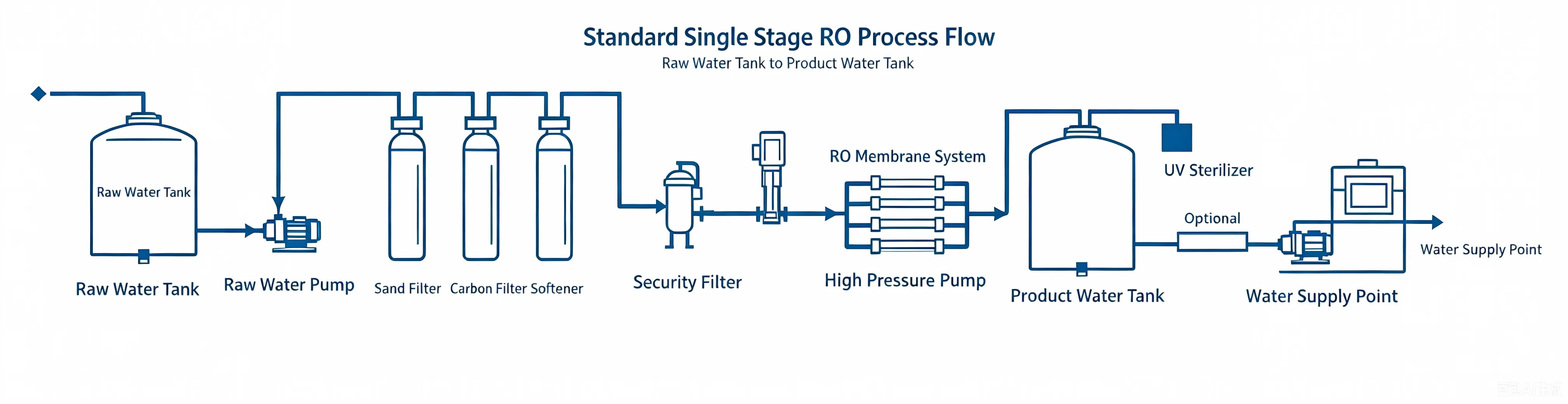

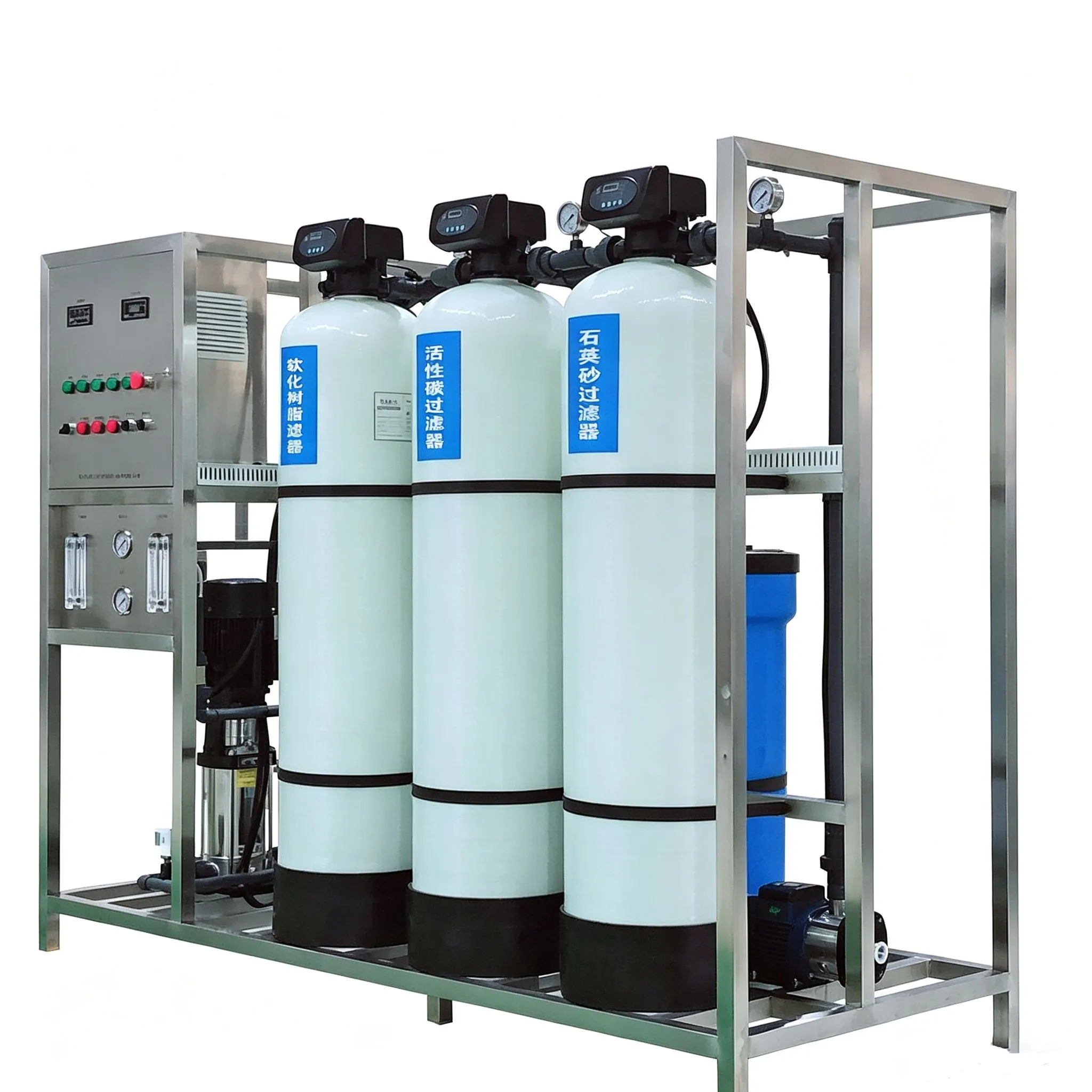

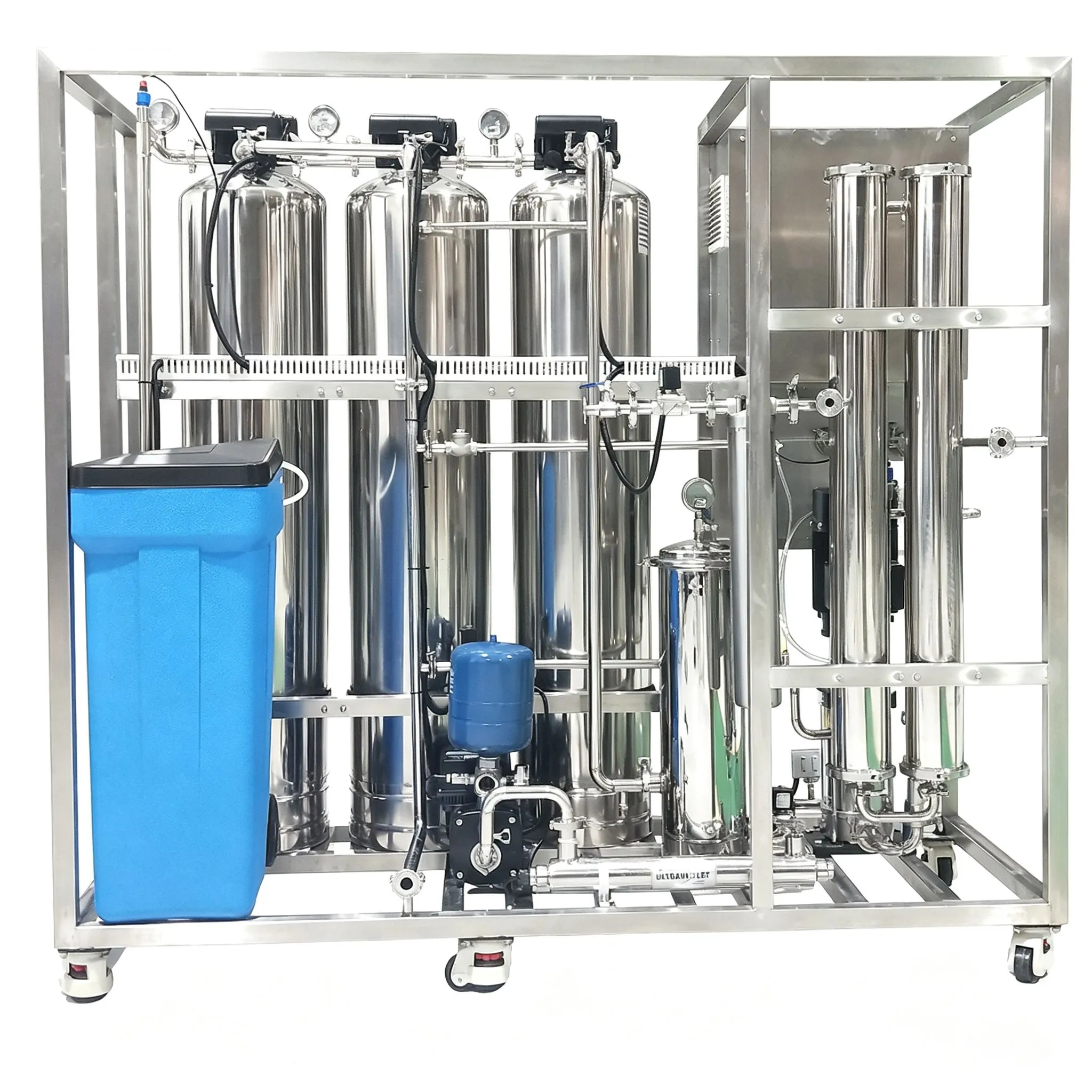

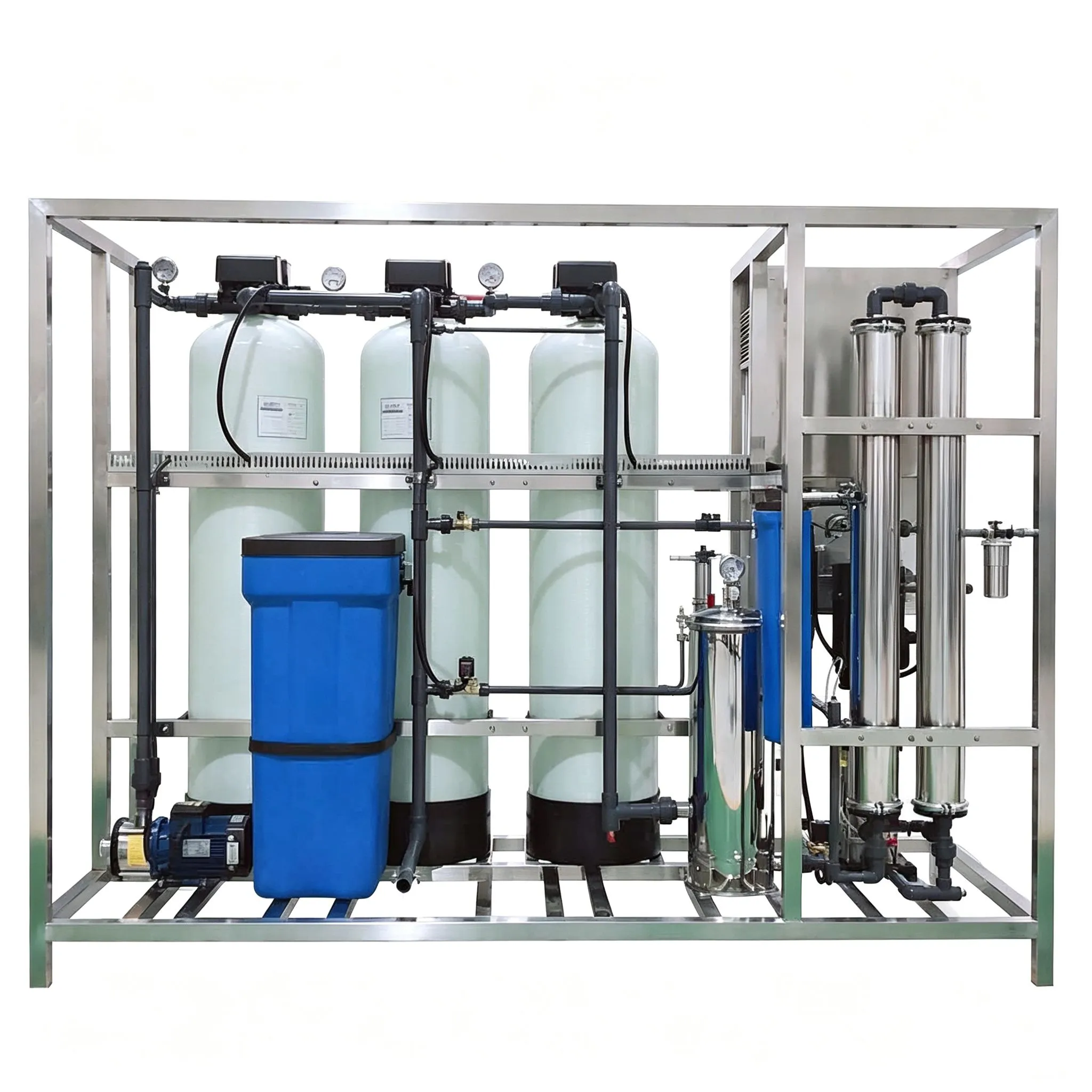

This is our standard Reverse Osmosis(RO) System Water Purifier with product water capacity 500Liters/Hour For some good raw water conditions,such as the municipal water,tap water at TDS<500ppm .It integrated Sand Filter/Activated carbon filter/Resin Filter(water softener) for pretreat before Ro efficiency filtration. The product water conductivity can be reduced to 10uS/cm or below.
Specifications:
| Product Name: |
Reverse Osmosis System(RO)/ Ro Plant/RO Purifier |
| Product Capacity: |
500L/H |
| Recovery Rate: |
65% |
| Water Source : |
industrial waste water ,tap water,well water,seawater,brackish water,surface water,ground water,borehole water etc. |
| Feed Water Quality: |
Turbidity: <5 NTU, SS<20mg/L, Residual Chlorine<0.1mg/l |
| Working Temprature: |
2-50ºC |
| Operating Pressure: |
0.2-1.6 MPa |
| Operating Mode: |
Full Automatic or Semi-Automatic or Manual |
| Product Water : |
Turbidity ≤ 0.1 NTU,Conductivity:<10uS/cm,Quality meet WTO Potable Drinking Water Standard |
| Membrane Element: |
RO membrane,china brand (Ovay ) or Dow/Hydranautics/Toray can be customized as requirement |
| Qty of membrane element: |
2PC,4040 |
| Power Supply: |
380V/50Hz/3Pha or customized |
| Pretreatment Filter |
1x Sand Filter;1x Carbon Filter;1x Resin Filter(Softener),
FRP tank,Runxin Automatic Control Valve,Automatic Backswash
|
| Share your specific requirements with us, and we will craft an engineering marvel tailored to your needs, a meticulously customized system designed to elevate your business to new heights. |
Application
1.Marine industry: Yachts, cargo ships, fishing vessels, offshore drilling platforms for daily drinking and domestic water supply.
2.Coastal & remote islands: Residential living water, village centralized water supply, resort freshwater system.
3.Industrial use: Brackish water desalination, production process water, boiler makeup water, ultra-pure water pre-treatment.
4.Outdoor & emergency use: Portable mobile RO units for field operations, disaster rescue, remote construction camps.
5.Commercial fields: Hotels, seaside restaurants, aquaculture farms, small coastal water plants.
